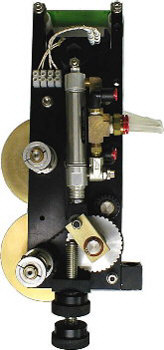

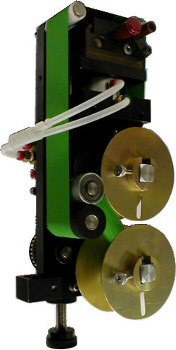

T22 Hot Stamp Printer

T22 Hot Stamp Printer

Designed for medium to high speed applications with restricted mounting envelopes,  the T22 Hot Stamp Printer offers an economical approach to medium area hot stamp printing requirements, with the benefit of superior print quality.  The T22 is equally at home on vertical form-fill-seal machines, horizontal vacuum form machines, horizontal continuous motion wrappers, and intermittent motion labeling equipment.  Common applications include net weight statements, price and date printing, lot and batch codes, sell by dating, and ingredients panels.

The T22 uses heated metal type to imprint information on almost any packaging media.  The easy-change 2" x 2" print head can be set with individual letters and numbers, pre-made steel or magnesium printing plates, or a combination of both individual characters and pre-made plates.

A wide variety of custom mounting brackets and control packages are available to suit your specific application.

Printing Specs:

  • Print Area: 2" x 2"
  • Cycle Rate: 180+ prints per minute
  • Air Requirement: 60 psi @ 0.1 cfm
  • Input Power: 120VAC 3A

Dimensions:

  • Length: 14-3/4"
  • Width: 4"
  • Depth: 7-3/4"
  • Maximum Foil Roll Diameter: 4"
  • Minimum Foil Width: 1/2"
  • Maximum Foil Width: 2-1/4""
  • Minimum Foil Advance: 0.01"
  • Maximum Foil Advance: 2-1/4""

Construction:

  • Type II Anodized Aluminum Frame
  • Stainless Steel Air Cylinders, Roller Shaft, and Assembly Hardware
  • Shielded Bearings
  • Temperature Control: Bi-metal Disc Type
  • Rack and Pinion Foil Advance
  • Infinitely Adjustable Foil Stop for Precise Foil Advance

Options:

  • Also Available with 2" x 4" and 4" x 4" Print Area

Supplies needed for operation:
