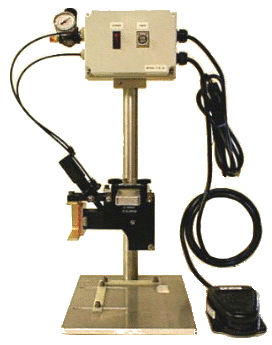

TTS-J2 Table Top Coding System

Reliable and easy to operate, the TTS-J2 Coding System, is an excellent choice for your hand coding applications.  Utilizing rubber type and disposable ink cartridges, the TTS-J2 makes a high quality mark, without the expense and hassle of a hot stamp or other system.  The 2" x 2" print head allows for a wide variety of messages including dates, lot numbers, and product identification codes.

To operate, simply place the product to be marked between the adjustable registration bars, and the photoeye signals the printer to cycle.  In less than 1 second the coder is ready to print again.  Machine speed is limited only by the ability of the operator to feed the product; the J2 printer can run at excess of 80 prints per minute.

The TTS-J2 is the best choice for your hand coding requirements where a quality mark is important, but price is the ultimate factor.  With available type sizes ranging from 1/16" to 2",  the TTS-J2 offers the flexibility to print a wide variety of different messages, and does it for a very reasonable cost.  The simple design of the J2 printer means consistent, reliable operation that is virtually maintenance-free.

Printing Specs:

  • Printer Type: Model J2 Contact Ink
  • Input Power: 120VAC 5A
  • Air Requirement: 15-20 psi @ 0.1cfm
  • Maximum Print Area: 2" x 2"
  • Minimum Print Area: 1/16"
  • Maximum Product Width: 12"
  • Maximum Product Length: None
  • Maximum Product Height: 6"

Features:

  • Anodized Aluminum Frame
  • Adjustable Guides
  • Foot or Microswitch Activated

Supplies needed for operation:
